card-tracker

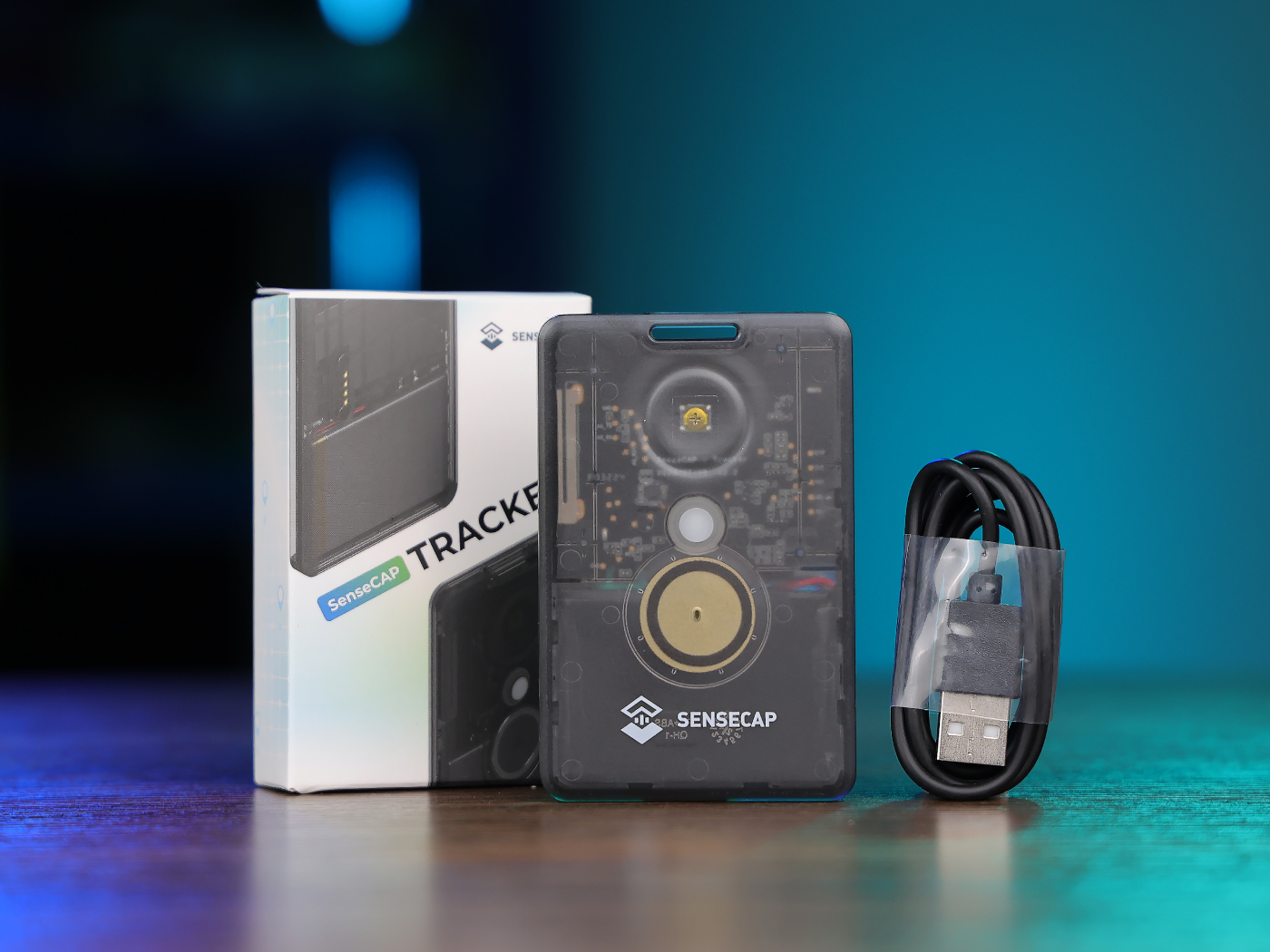

SenseCAP T1000-E is a high-performance tracker designed for Meshtastic. As small as a credit card, effortlessly fitting in your pocket or attaching to your assets. It embeds Semtech's LR1110, Nordic's nRF52840, and Mediatek's AG3335 GPS module, providing Meshtastic users with a high-precision, low-power positioning and communication solution.
:::warning[Note] Currently, LR1110 radios are unable to receive Meshtastic packets from the older SX127x radios, it requires a breaking change to fix this. Transmitting works and when hopping through an SX126x radio, you can still receive packets from SX127x radios. :::
Specifications
- MCU
- Nordic nRF52840 (supports Bluetooth)
- LoRa Transceiver
- Semtech LR1110
- Frequency options
- 865-928 MHz
- Navigation Module
- Mediatek AG3335 GPS chip
- Battery Capacity
- Rechargeable lithium battery, 700mAh
- Charging
- USB magnetic charging cable
Features
- Button and Buzzer: For user interaction and alerts.
- Pogo Pins: Four pins for USB, DFU, serial logging, and charging.
- Rugged Build: IP65 rated, waterproof and durable for various environments.
Resources
- Firmware file:
firmware-tracker-t1000-e-X.X.X.xxxxxxx.bin - Purchase Links:
-
International:
Images
