tap

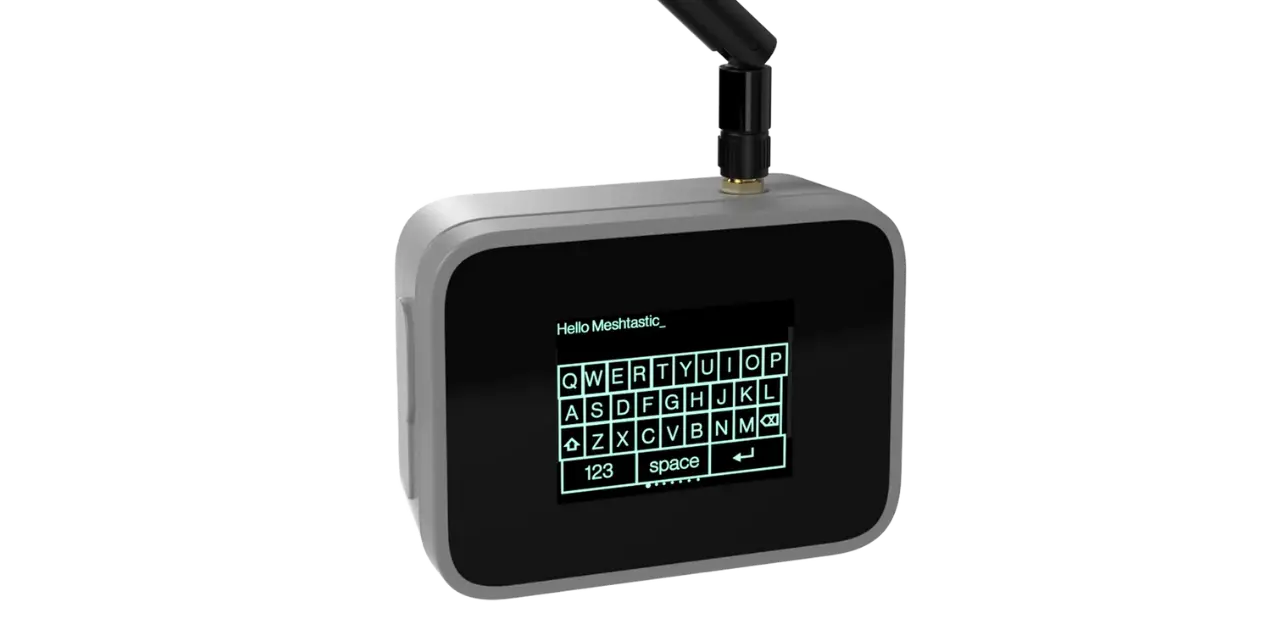

The WisMesh TAP is a Meshtastic device equipped with a touch screen featuring an on-screen keyboard that's built on the WisBlock RAK19007 Base Board and RAK4631 nRF52 core module in an IP65-rated enclosure. This makes it perfect for reliable off-grid communication during activities like exploring, hiking, or testing other remotely deployed devices, all without needing a phone.

• Base Board
• RAK19007
• MCU
• RAK4631 (nRF52840)
  • Bluetooth BLE 5.0
  • Very low power consumption
• LoRa Transceiver:
• SX1262
• Frequency Options:
• 868 MHz
• 915 MHz
• 920 MHz
• 923 MHz
• Connectors:
• USB-C
• SMA

Features

• 320 x 240 TFT touch screen
• 3200 mAh rechargeable battery
• GNSS location module onboard (RAK12500)
• External RAK Blade 2.3 dBi LoRa antenna
• Internal bluetooth antenna
• Versatile- use as a portable handheld or pick a mounting solution

Resources

• Firmware file: firmware-rak_wismeshtap-X.X.X.xxxxxxx.uf2
• Further information on the WisMesh TAP can be found on the RAK Documentation Center.
• Purchase Links:
• US
  • Rokland - US915 Mhz
• International
  • RAKwireless Store
  • RAKwireless AliExpress
