wio-e5

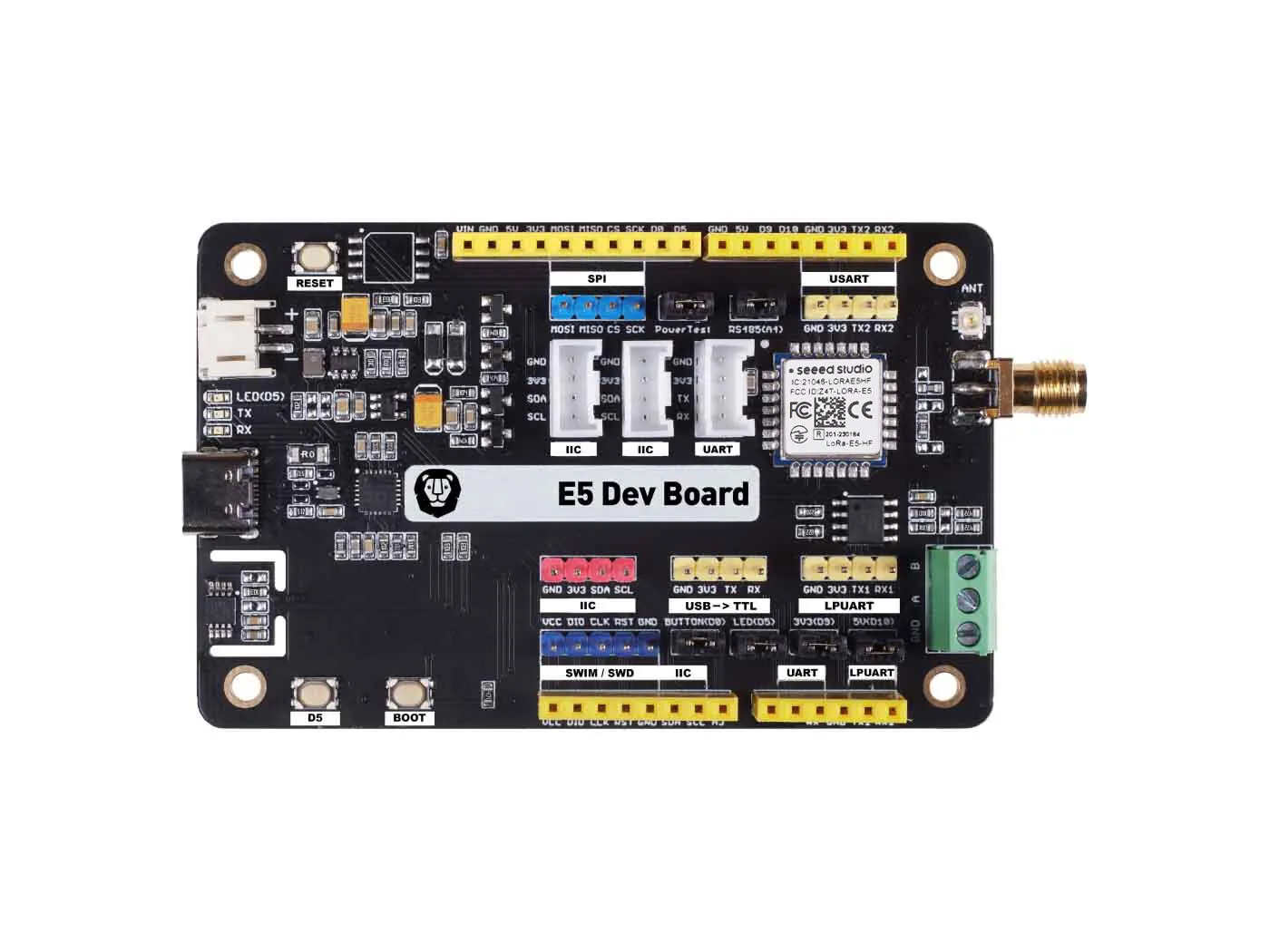

Seeed Wio-E5 Dev Kit

• MCU
• STM32WLE5JC
• LoRa Transceiver
• Semtech SX1262
• Frequency options
• 868 MHz
• 915 MHz
• 923 MHz
• Connectors
• USB-C
• LoRa Antenna: SMA antenna connector and U.FL/IPEX
• GPIO
• I2C x2
• UART x1
• RS 485
• Battery
• SWDIO

Features

• Temperature and Humidity Sensor (NXP LM75ADP)
• Reset switch, power jumpers, button

Resources

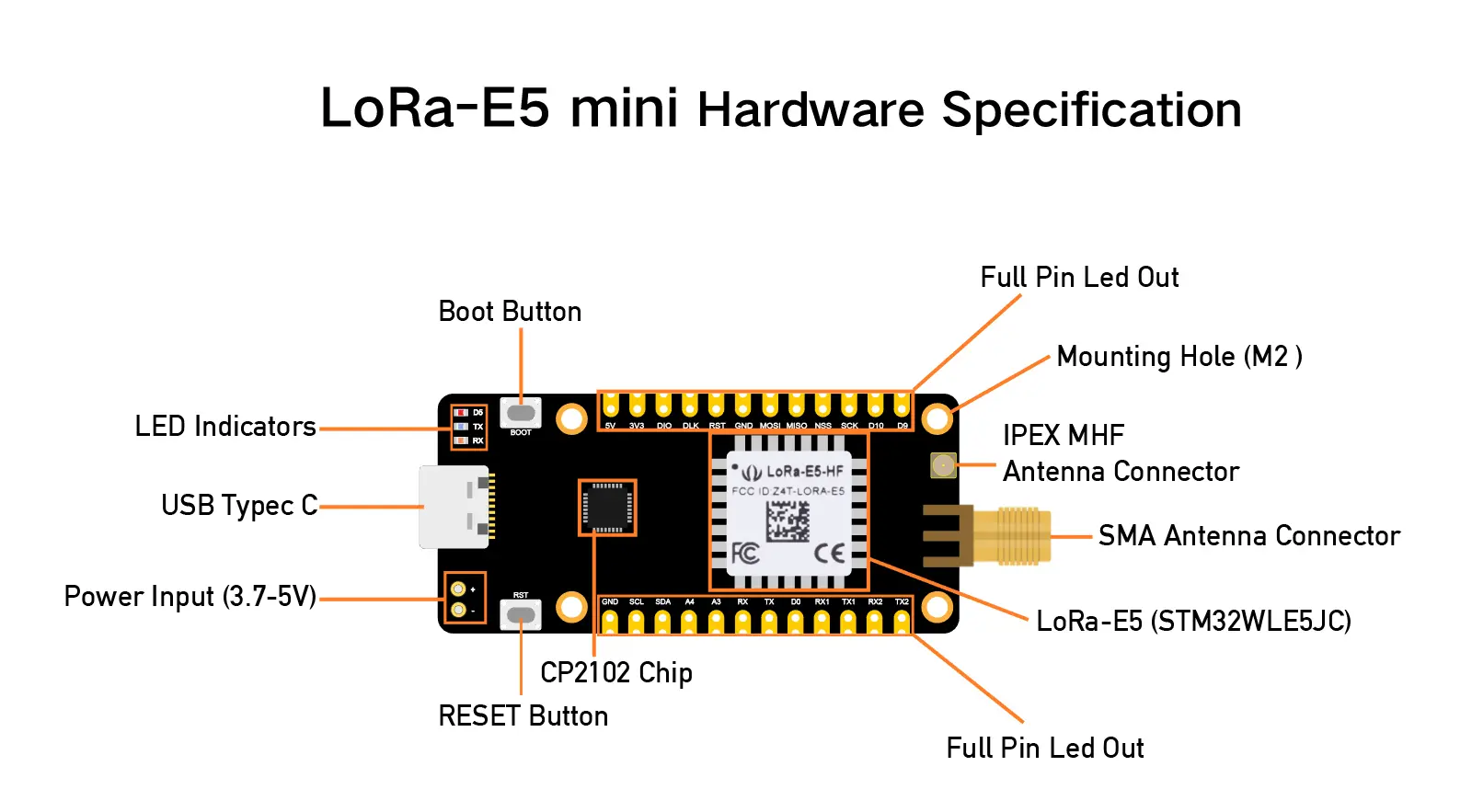

Wio E5 mini Dev Board

• MCU
• STM32WLE5JC
• LoRa Transceiver
• Semtech SX1262
• Frequency options
• 868 MHz
• 915 MHz
• 923 MHz
• Connectors
• USB-C
• LoRa Antenna: SMA antenna connector and U.FL/IPEX
• GPIO

Features

• Reset switch, power jumpers, button

Resources
