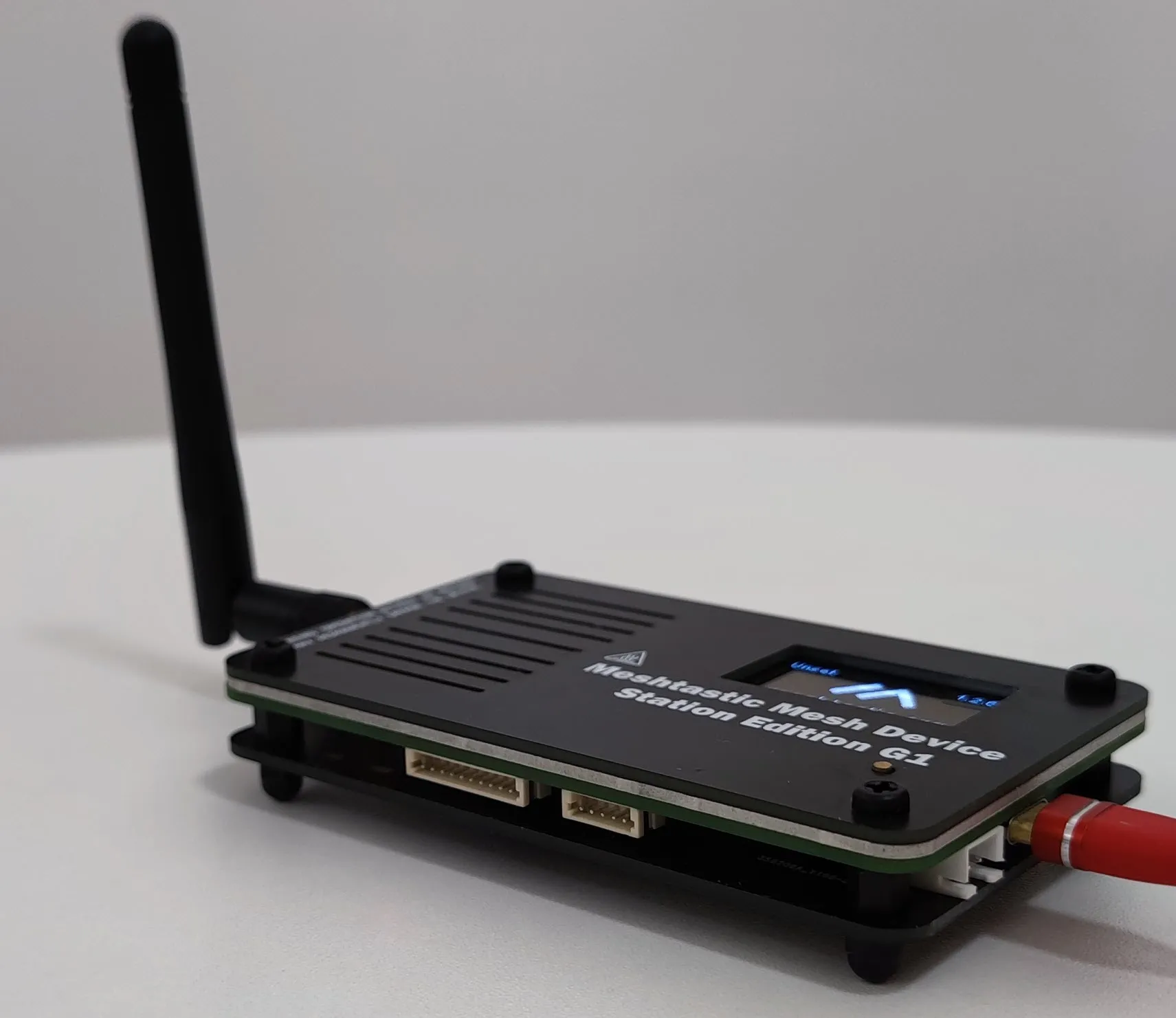

The Station series of devices, designed by Neil Hao from B&Q Consulting and powered by Meshtastic, are compact and durable LoRa devices designed for high-performance radio frequency communication. They feature a powerful PA for LoRa communication, a rugged SMA antenna socket, and a variety of external IO interfaces.

For more comprehensive information on the Station Series of devices, be sure to visit the B&Q Consulting Station Series Wiki page.

Specifications

• MCU
• ESP32 WROOM
  • WiFi
  • Bluetooth 4.2
• LoRa Transceiver
• Semtech SX1262
• Additional 35dBm LoRa Power Amplifier
• Frequency options
• US-915 MHz
• EU-868 MHz
• Navigation Module
• Optional
• Antenna
• SMA Socket
• Connectors
• USB-C (PD Protocol)

Features

• Meshtastic pre-installed
• User button
• 1.3 inch OLED screen
• Optional GPS Module and IO Extension Socket
• Optional 12V Battery Docker which can be used as Backup Power, or in scenarios that require mobility

Resources

• Firmware file: firmware-station-g1-X.X.X.xxxxxxx.bin
• Unit Engineering's Official Wiki
