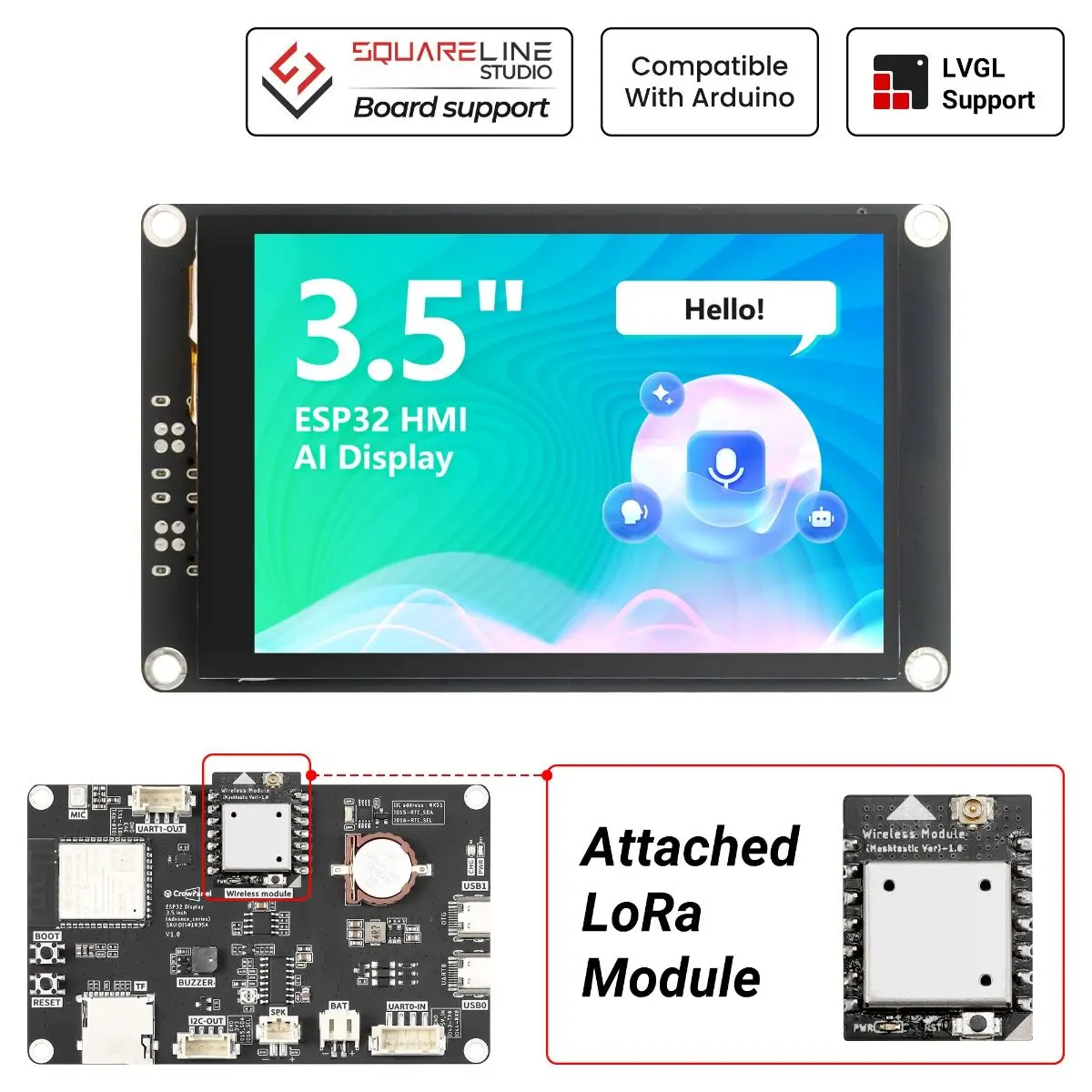

The CrowPanel Advance Series, designed by Elecrow, is a versatile line of high-performance HMI touch displays available in 2.4", 2.8", 3.5", 4.3", 5.0", and 7.0" sizes, all powered by the ESP32-SE platform. With modular wireless support including LoRa via the SX1262 module, these displays have been successuflly adapted for use with Meshtastic. Featuring vibrant IPS screens, responsive capacitive touch, and flexible I/O, the CrowPanel Advance series makes an ideal platform for Meshtastic UI (MUI).

Specifications

• MCU
• ESP32-S3
  • WiFi 2.4GHz b/g/n
  • Bluetooth 5.0
• LoRa Transceiver
• Semtech SX1262
• Frequency options
• All Meshtastic options.
• Antenna
• U.FL/IPEX antenna connector for LoRa
• Connectors
• USB-C (x2)
• BAT (PH2.0-2P)
• Displays
• IPS Capacitive Touch
  • 2.4" (320x240)
  • 2.8" (320x240)
  • 3.5" (480x320)
  • 4.3" (800x480)
  • 5.0" (800x480)
  • 7.0" (800x480)

Resources

• Firmware files:
• firmware-elecrow-adv-24-28-tft-X.X.X.xxxxxxx.bin
• firmware-elecrow-adv-35-tft-X.X.X.xxxxxxx.bin
• firmware-elecrow-adv1-X.X.X.xxxxxxx.bin
• Purchase Links:
• 2.4" Official Store
• 2.8" Official Store
• 3.5" Official Store
• 4.3" Official Store
• 5.0" Official Store
• 7.0" Official Store
• Wiki Links:
• 2.4" Wiki
• 2.8" Wiki
• 3.5" Wiki
• 4.3" Wiki
• 5.0" Wiki
• 7.0" Wiki
